ILLUMINATION OPTICS
© Muschaweck / Rehn 2022

Commentary

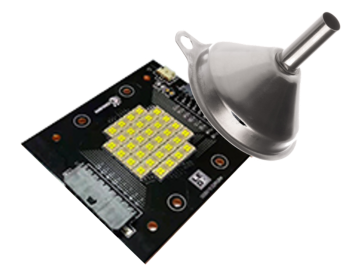

The LED funnel

The ultimate guide for Inventors.

Start with a proprietary interpretation of some

laws.

A 1 * L 1 = A 2 * L 2 A is area, L is lumen density. Index 1 depicts the funnel entrance area and 2 the exit aperture. Hence, for A 2 < A 1 density must go up !

Do not allow the government to decide on your

way to do physics.

Design a device that is so complicated that nobody

can easily understand how it works

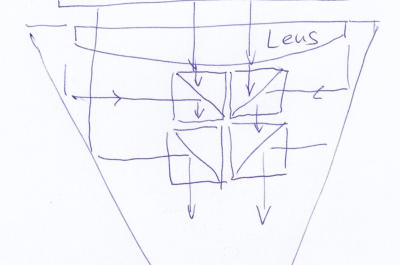

If you send light from two sides into a beam splitter, it will be combined and luminance will double. Right ?

Important : Use just sketches instead of

simulations or experiments

That‘s good enough for the public.

Avoid exact technical

terms

Lumen density is good enough for the public. Who cares about luminance?

If you‘re lucky, you will soon be seated during a

long flight next to a high rank manager of a big

player and sell your idea.

Publicly complain

how bad you are treated by their engineers who merely want to suppress your invention. Even worse : patent authorities bring up a second law … (A melange of several true stories)

A non-cat !

Why to define someting by what it is not ?

Optics is impressive !

The Largest Lens

3,200 Megapixels (formerly, the largest lens was Zeiss Apo Sonnar T* 1700mm F/4) The Fastest Lens Zeiss Super-Q-Gigantar 40mm F/0.33

The Biggest Projector ever

Swiss made. The spitlight cloud projector.

A Farewell to Solar

Lunar collection ! (German)

Management

The 8 most stupid Management

Fads of All Time

We all love Six Sigma !
